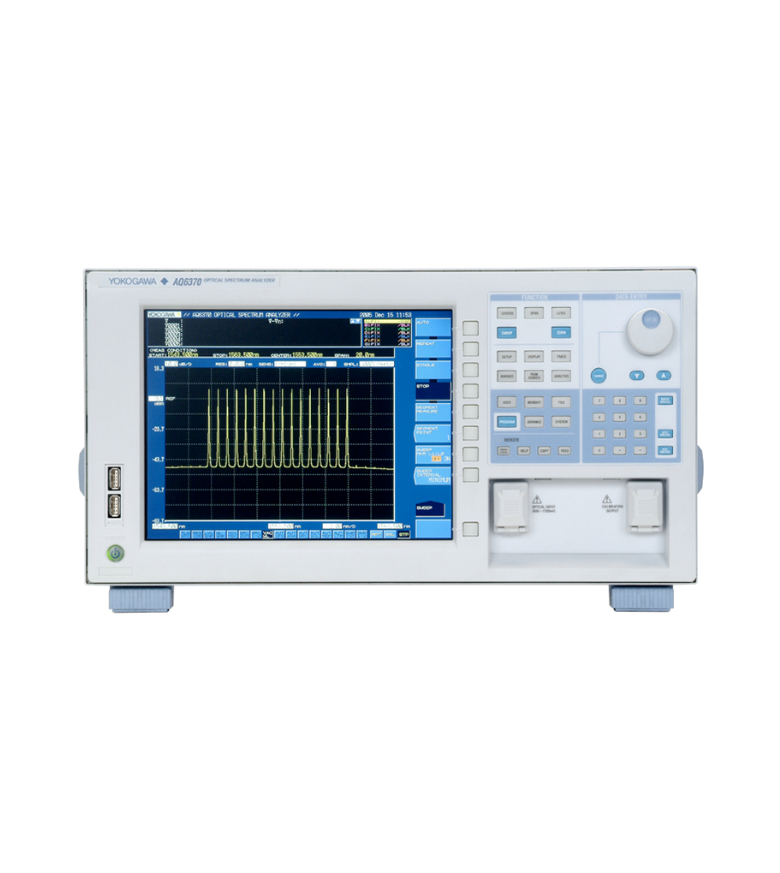

Yokogawa AQ6370ESpectrum Analyzer

The AQ6370E is the new model in Yokogawa’s most popular telecom class OSA. With a versatile wavelength range of 600 nm to 1700 nm, it is ideal for both telecom and general purpose applications. The unique free-space input design allows him to test both DWDM-class single-mode and VCSEL-sourced multimode fibers in one single model.
The new high-speed measurement mode, high close-in dynamic range mode, touch panel, and APP function greatly improve measurement efficiency.

  • Wavelength range:600 to 1700 nm
  • Wavelength accuracy:±0.008 nm typ.
  • Wavelength resolution:0.02 nm
  • Close-in Dynamic range:78 dB typ.
  • Level range:+20 to -90 dBm
  • Up to 2x faster measurement: SMSR mode
  • Sharper spectrum measurement: HCDR mode
  • Large touchscreen LCD
