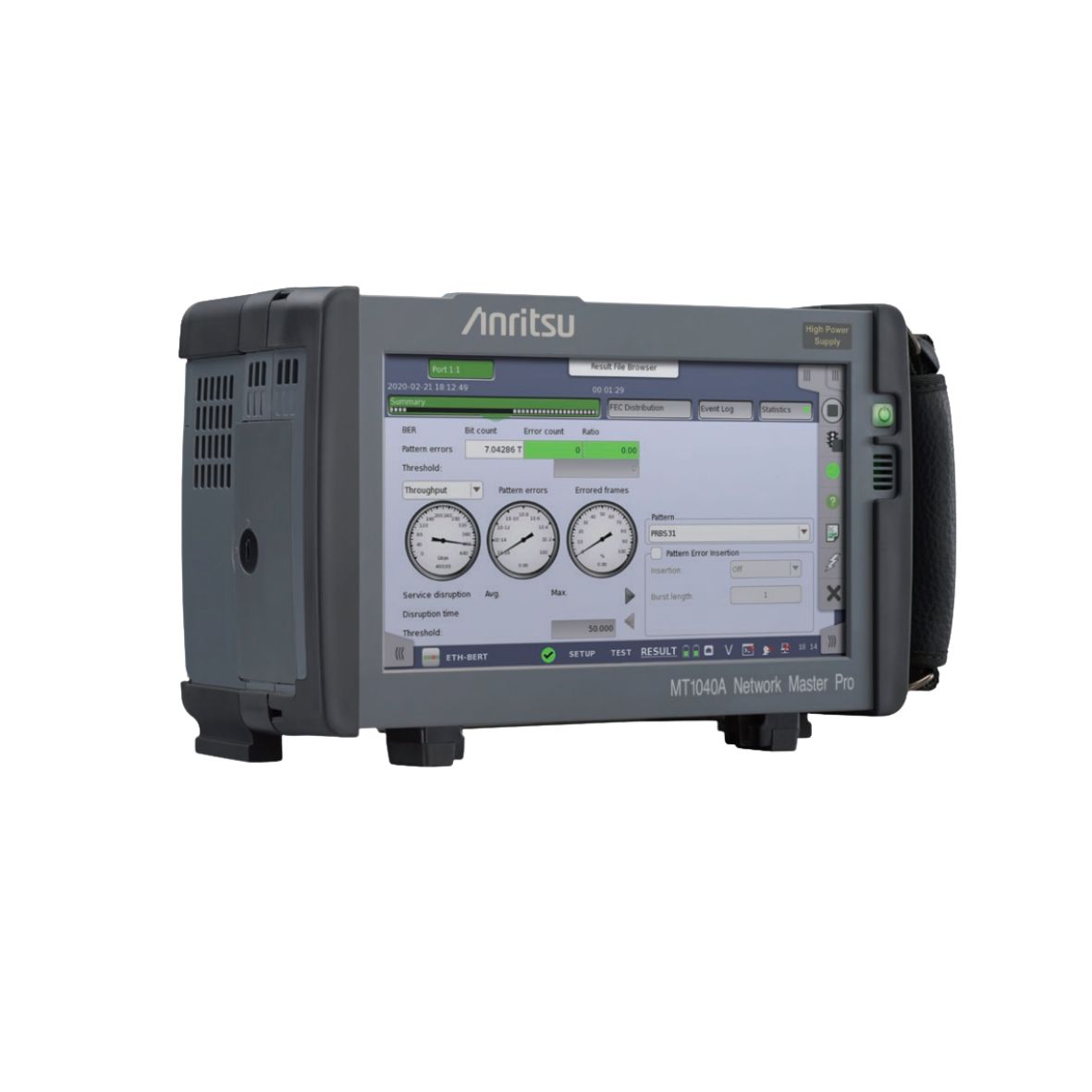

MT1040A Network Master Pro (400G Tester)
The Network Master Pro MT1040A is a portable, high-performance tester designed for installation, maintenance and verification of modern high-speed networks including Ethernet up to 400 Gb/s. It supports a wide range of network interfaces and optical transport functions, making it suitable for access, metro, data-centre and mobile backhaul/fronthaul networks.
🔑 Key Features
- Wide Speed & Protocol Support: Supports Ethernet from 10 Mb/s up to 400 Gb/s, plus OTN/SDH/SONET and mobile fronthaul/backhaul interfaces like eCPRI, RoE, CPRI.
- Modular Expandability: Allows additional measurement modules (e.g., OTDR module) and supports various form-factors (QSFP-DD, OSFP etc.) for future-proofing.
- High-Speed Ethernet Test Capability: For 400G applications the MT1040A includes features like FEC analysis, latency and frame-loss measurement, dual-port 400G measurement (with option), and high accuracy.
- Intuitive Field Interface: Large 9-inch touch screen, user-friendly GUI, one-button automatic test (SEEK mode) for fast on-site commissioning and acceptance.
- Optical & Fiber Testing: Can incorporate OTDR fiber testing modules, inspect fiber end-faces, evaluate optical loss and continuity as well as high-speed Ethernet.
- Remote & Automated Operation: Supports remote control, automated test sequences, pass/fail evaluation, and report generation to simplify field workflow and operator skills.
